Here I look at “Compensated” arithmetic and its application to a small side-project CompensatedBLAS. Compensated arithmetic allows you to implement higher precision accumulation and rounding purely with lower precision floating point words (for example fp64-like precision and rounding with two fp32). This approach to higher precision calculation has a lot of advantages over just simply copying the data to a higher working precision and then doing arithmetic there. First it is often the case that only a very small number of values actually need the higher precision treatment, thus your input data can remain in the lower working precision without need to copy it into a higher working precision. Secondly it is sometimes the case that an architecture may handle the lower precision words fundamentally much faster than the higher precision words. Examples of this are tensor cores on many NVIDIA GPUs that only support fp16 operands, leading to greater than 2X speedups for fp16 compared to fp32, even though it is only a 2x smaller word. Finally, on CPUs there’s generally no mixed-precision accumulation:
the instruction set doesn’t provide a fused multiply-add that takes fp32 operands and accumulates directly into fp64 results. You must first upcast the fp32 inputs to fp64 in separate registers and then perform the FMA, which adds overhead and halves your effective SIMD width. With all of the above in mind compensated arithmetic basically allows you to specify your inputs in a working precision and backend code can achieve any accumulation precision it needs to without copying your data or doing inefficient mixed precision. I end the post with some concrete examples of compensated accumulations improving pathological numerical behavior in particular when it involves repeated calls into BLAS routines where we accumulate into the same matrix repeatedly.
Compensated arithmetic starts with the idea of expanding a single floating-point word into k words each representing a different exponent range.
1) k-TERM EXPANSION (ONE NUMBER AS k+1 WORDS)
---------------------------------------------
true value ─────────────────────────────────────────►
[ w0 ] [ w1 ] [ w2 ] ... [ wk-1 ]
▲ ▲ ▲ ▲
| | | |
highest next finer ... finest kept bits
word spill spill (beyond this are dropped)
- Each wi is a normal floating-point word. The sum w0 + w1 + ... + wk-1 ≈ true value.
- w0 carries most magnitude; bins w1..wk-1 store progressively tinier “lost” bits.
Without doing any operations this expansion just gives you back k terms that are zero, but suppose we had a way to exactly represent any sum with a k=1 expansion. call this two_sum so that [x,e] = two_sum(a,b) is an exact k=1 term expansion for a+b. Then we can accumulate into an arbitrary number of compensation terms, achieving any precision we like:
B) CASCADED INSERTION OF ONE VALUE x
------------------------------------
Goal: add x into (w0..wk-1) using only two_sum.
function insert(x):
(w0, c) = two_sum(w0, x) // c = spill from adding x into w0
(w1, c) = two_sum(w1, c) // pass spill down the stack
(w2, c) = two_sum(w2, c)
...
(wk-1, c) = two_sum(wk-1, c)
// leftover c would be kept if we had more bins
Flow:
x ──► [two_sum] ──► w0' carry c0 ─► [two_sum] ─► w1'
c1 ─► [two_sum] ─► w2'
...
ck-2 ─► [two_sum] ─► wk-1'
This is the core idea of compensated arithmetic, and this is the theme that plays out repeatedly. Now I show concretely how to implement two-sum and two-prod (for products).
As alluded to above, two_sum exactly represents the sum of two floating point words a,b with two floating point words of the same length. In C++ this can be implemented as follows
// ---------------------------------------------
// two_sum: error-free transform of a+b
// Returns (s, e) with s = fl(a+b) and a + b = s + e exactly.
// Reference: Knuth’s 2Sum.
// ---------------------------------------------
inline std::pair<double, double> two_sum(double a, double b) {
double s = a + b; // Rounded sum
double bp = s - a; // Portion of s contributed by b
double e = (a - (s - bp)) + (b - bp); // Recover lost low bits
return {s, e};
}
and a diagram to help visualize
2) HOW two_sum(a,b) CAPTURES LOST ADDITION BITS
-----------------------------------------------
Let s = fl(a+b), e = exact_low_bits so that a + b = s + e exactly.
exponent axis (coarse) → [ ... 2^E ... 2^(E-52) ... ]
a: |==========mantissa bits===========|
b: |======mantissa=======|
s: |==========rounded to 53 bits===========|
e: |residual|
- s is the rounded result in working precision.
- e is the “spill” that didn’t fit in s’s mantissa window.
- We insert s into w0, and cascade e into bins w1.., preserving information.
Numerical linear algebra mostly deals in dot products or axpy-like operations though, which means we also need products. Fortunately there is an equivalent two_prod for products
two_prod like two_sum exactly represents the product of a*b with two floating point words of the same length as the inputs. In architectures with fused-multiply-add we can implement this fairly efficiently like below
// ---------------------------------------------
// two_prod: error-free transform of a*b using FMA
// Returns (p, e) with p = fl(a*b) and a*b = p + e exactly.
// ---------------------------------------------
inline std::pair<double, double> two_prod(double a, double b) {
double p = a * b; // Rounded product
double e = std::fma(a, b, -p); // Exact residual from FMA
return {p, e};
}
The key to the fused-multiply-add isn’t just that it combines operations efficiently, but specifically that it rounds only once at the end.
4) HOW two_prod(a,b) CAPTURES LOST MULTIPLICATION BITS
------------------------------------------------------
two_prod(a,b) returns p,e with a*b = p + e exactly (using FMA).
mantissa windows (concept):
a: |==========|
b: |==========|
p: |==========rounded a*b|==========|
e: |low part from FMA|
- Insert p then e into the expansion to keep product bits beyond 53 bits.
Combining two_sum, two_prod and k-term accumulation we get a core linear algebra kernel: the dot product
// -----------------------------------------------------------
// k_term_compensated_dot:
// Computes sum_i x[i]*y[i] using a k-term compensated accumulator.
// Holds one main term and k side terms (approx. k+1-word precision).
//
// Parameters:
// x, y : input arrays
// n : length
// k : number of compensation terms
//
// Notes:
// * Loops could early-exit if r==0.0, but we skip that for simplicity.
// * Final reduction is done in long double for correct rounding.
// -----------------------------------------------------------
inline double k_term_compensated_dot(const double* x,
const double* y,
std::size_t n,
int k)
{
double main = 0.0;
std::vector<double> comp(k, 0.0);
for (std::size_t i = 0; i < n; ++i) {
// Multiply exactly
auto [p, pe] = two_prod(x[i], y[i]);
// Insert p into expansion
auto [new_main, r] = two_sum(main, p);
main = new_main;
for (int j = 0; j < k; ++j) {
auto [new_cj, r2] = two_sum(comp[j], r);
comp[j] = new_cj;
r = r2;
}
// Insert product residual pe
auto [new_main2, r3] = two_sum(main, pe);
main = new_main2;
for (int j = 0; j < k; ++j) {
auto [new_cj, r4] = two_sum(comp[j], r3);
comp[j] = new_cj;
r3 = r4;
}
}
// Fold expansion in extended precision
long double hi = static_cast<long double>(main);
for (int j = 0; j < k; ++j)
hi += static_cast<long double>(comp[j]);
return static_cast<double>(hi);
}
With the above we can implement actually a huge number of BLAS routines, which I have done in CompensatedBLAS.
CompensatedBLAS is a small project I made to implement all of BLAS with two goals:
The project is still somewhat early and has not fully implemented BLAS yet, but has a good amount ready.
This behavior is what you would see if you simply linked CompensatedBLAS into an existing project and started to use it. It accumulates into k compensation terms and computes the rounded result in working precision at the end of the call.
#include "compensated_blas.hpp"
#include <vector>
#include <iostream>
extern "C" {
double ddot_(const long long* n, const double* x, const long long* incx,
const double* y, const long long* incy);
}
int main() {
using namespace compensated_blas::runtime;
set_compensation_terms(0); // plain accumulation
std::vector<double> x{1.0, 1e-16, -1.0};
std::vector<double> y{1.0, 1.0, 1.0};
const long long n = (long long)x.size(), inc = 1;
double d = ddot_(&n, x.data(), &inc, y.data(), &inc);
std::cout << "plain ddot = " << d << "\n";
}
If you’re willing to break from a pure BLAS interface you can “register” a vector or a matrix with the CompensatedBLAS runtime and when you pass the associated pointer into routines that will accumulate into it then they will use a k-term expansion that is persisted between calls. Thus you can do thousands of accumulations with e.g. xSYRK or xAXPY and still round only once at the end. In this case rounding is explicitly the caller’s responsibility, so this is definitely not typical BLAS behavior but it is useful to expose to users.
#include "compensated_blas.hpp"
#include <vector>
#include <iostream>
extern "C" {
void daxpy_(const long long* n, const double* alpha, const double* x,
const long long* incx, double* y, const long long* incy);
}
int main() {
using namespace compensated_blas::runtime;
set_compensation_terms(1); // enable 1 bin
clear_deferred_rounding_registrations(); // start clean
std::vector<double> x{1.0, 1e-16, -1.0};
std::vector<double> y{0.0, 0.0, 0.0};
// Register the *output* so its per-element bins are kept (deferred rounding).
deferred_rounding_vector_t desc{};
desc.data = y.data(); desc.length = y.size(); desc.stride = 1;
desc.element_size = sizeof(double); desc.alignment = alignof(double);
desc.type = scalar_type_t::real64;
register_deferred_rounding_vector(desc);
const long long n = (long long)x.size(), inc = 1;
const double alpha = 1.0;
daxpy_(&n, &alpha, x.data(), &inc, y.data(), &inc); // y += x (with bins)
// If your project exposes a small helper, flush here to fold bins -> primary.
// e.g. flush_vector_if_deferred(y.data(), y.size());
std::cout << "y[0..2] after daxpy (deferred, 1 term): "
<< y[0] << ", " << y[1] << ", " << y[2] << "\n";
clear_deferred_rounding_registrations();
set_compensation_terms(0); // back to plain mode if desired
}
For the most part applying compensation to BLAS amounts to finding efficient ways to roll the compensated dot product above into the inner loops of ordinary BLAS. For example we may want the k compensation terms to be laid out in memory strided rather than contiguously so that we can vectorize the two-sum & two-prod with the same stride that the underlying BLAS is vectorized.
The primary exceptions to this are givens rotations and triangular solves with non-unit diagonals. My first attempt in CompensatedBlas to implement the triangular solves involved a somewhat clumsy Newton-Raphson refinement of division to expand it out to k terms. In retrospect I think it would be better to block the triangular solve into small sub-matrix triangular solves (small enough that compensation terms can be static arrays embedded in the function) and then do iterative refinement on each sub-matrix solve, using compensated matrix-matrix/vector product for the residual.
For givens rotations I did not put much effort beyond simply getting the netlib blas test suite to pass. This is not a statement about general important of givens rotations but rather my own general lack of use of these from BLAS.
I came up with two examples where the deferred rounding capability of CompensatedBLAS can improve numerical behavior on common numerical linear algebra algorithms. In both cases these involve repeated calls to BLAS, which means that incorrect roundings on each call accumulate over time resulting in drift away from correct results.
The demo builds an n x n matrix C with n=--size, starting from zeros, by repeating --updates times: generate A with k=--rank columns where each column is a scaled copy of one of --basis cached “dependent” columns plus noise of size --noise-scale that shrinks each step by --noise-decay (randomness fixed by --seed); then do a lower-triangle SYRK update C += A*A^T (alpha=1, beta=1). Two runs are compared: a plain accumulation and a rolling-compensated one that keeps --compensation-terms extra bins per C[i,j] with deferred rounding, flushed at the end. Results optionally dump to --dump-prefix_plain.txt and --dump-prefix_compensated.txt, then the code symmetrizes C and reports the minimum Cholesky pivot as the stability/definiteness metric.
The basic idea of the above experiment is that we repeatedly accumulate rank-k symmetric updates from related vectors so that they aren’t quite linearly dependent, but are almost, and we keep repeating this summation. Eventually without compensation we obtain a good number of negative eigenvalues and a large negative cholesky pivot. Compensation mitigates this significantly though it should be noted that perfectly retaining definiteness on this algorithm will always be limited with a fixed working precision. Compensation bounds the pathological behavior to a very small region, whereas no compensation it can grow without bound.
reidatcheson@pop-os:~/clones/CompensatedBLAS/build/examples$ ./syrk_compensation_demo --size=64 --rank=16 --updates=1000 --compensation-terms=4 --dump-prefix=$PWD --seed=0 --basis=64 --noise-scale=3e-4 --noise-decay=0.1
SYRK compensation demo with size=64 rank=16 updates=1000
Plain min Cholesky pivot: -0.0000045109
Rolling-compensated min pivot: 0.0000019407
(...)
(uncompensated)
Smallest 5 eigenvalues:
-1.9427982037878256e-12
2.4192337217676416e-12
3.9206022117119458e-12
6.18032870190732e-12
9.0801014748812597e-12
(compensated)
Smallest 5 eigenvalues:
7.3348222192768711e-13
1.3501303405426835e-12
2.5594292350820926e-12
5.1230056487681293e-12
8.5714895623300911e-12
We solve A x = b on a --grid x --grid lattice where A is the 5-point Laplacian (apply with apply_laplacian) and b is all ones, starting from x=0. The algorithm is Conjugate Residual: at each iteration compute ap = A p, step x += alpha p, r -= alpha ap with alpha = (r·r)/(ap·ap), form ar = A r, then update directions beta = (ar·ap)/(ap·ap), p = r + beta p, ap = ar + beta ap. Stop when ||r|| < --tol or after --max-iter; log residual and orthogonality to r0 every --log-interval. Two runs are compared: a plain run and a compensated run that registers x, r, p, ap, ar for deferred rounding with --compensation-terms bins per element (using compensated ddot/daxpy), flushing bins where needed and at the end.
The idea here is that for short-recurrence Krylov solvers they must retain orthogonality with all the previous iterates (previous residuals in the case of conjugate-residual) and it is well-known that these rapidly lose orthogonality unless the entire residual history is actually stored in memory and reorthogonalized periodically in its entirety. My initial thought was that deferred rounding could mitigate this but what I found rather was not much improved retention of orthogonality properties, but still faster convergence. I suspect that some kind of quasi-orthogonality is being retained here leading to improved convergence behavior but I need to look into this further. Another possibility is that our window of orthogonality is simply just larger where uncompensated may have good orthogonality with the last say 20 vectors and compensated with the last 100 or more.
reidatcheson@pop-os:~/clones/CompensatedBLAS/build/examples$ ./conjugate_residual_solver --grid=128 --max-iter=3500 --log-interval=500 --compensation-terms=2
Conjugate Residual solver on 128x128 grid (16384 unknowns)
max iterations=3500 tolerance=1e-10 log interval=500
[plain] iterations=3500 final_residual=0.221156
orthogonality to r0:
iter= 0 residual= 707.349
iter= 500 residual= 49.17
iter= 1000 residual= 12.27
iter= 1500 residual= 4.60787
iter= 2000 residual= 0.296416
iter= 2500 residual= 0.122486
iter= 3000 residual= 0.0439887
iter= 3499 residual= 0.221156
[compensated] iterations=3500 final_residual=9.88736e-05
orthogonality to r0:
iter= 0 residual= 707.349
iter= 500 residual= 55.1866
iter= 1000 residual= 35.7823
iter= 1500 residual= 2.7677
iter= 2000 residual= 0.0822101
iter= 2500 residual= 0.0137711
iter= 3000 residual= 0.00186914
iter= 3499 residual= 9.88736e-05

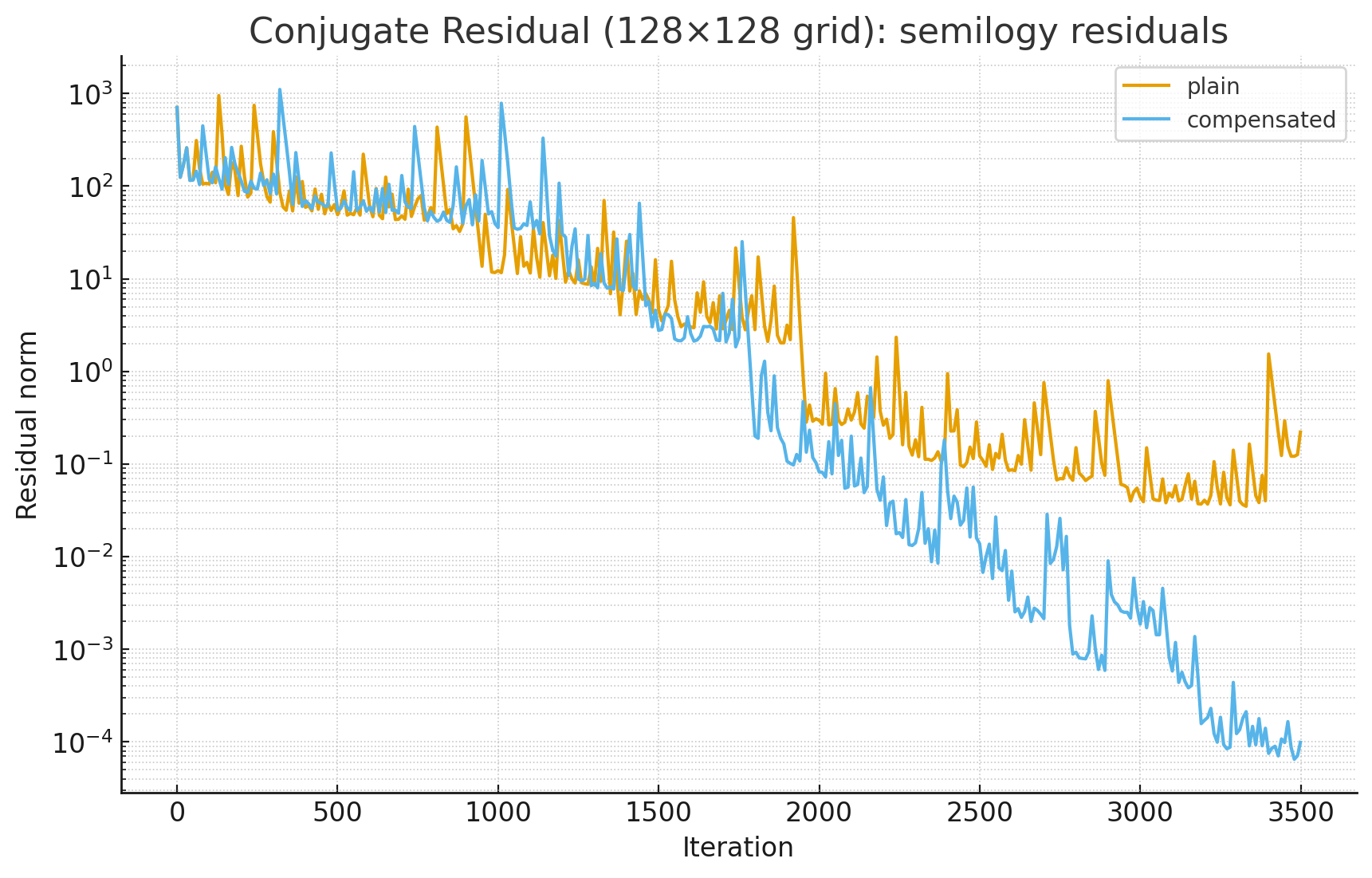

Here is the same set of residuals but sampled every 10 iterations, on a plot.
CompensatedBLAS is still an experimental project both on the software engineering side and on the numerical and mathemtaical side, but some of the results are already promising that there is some potential benefit to having this capability. The real question is whether it can be done in a way that the performance tradeoff does not kill any utility. I think the answer to this is ultimately yes, but designing good compensated BLAS microkernels would be highly nontrivial compared to the task of simply implementing naive BLAS as I have done here.
